Name: Merging ADA8V3S Dante Ready™ 192
SKU: 61718
Availability: InStock

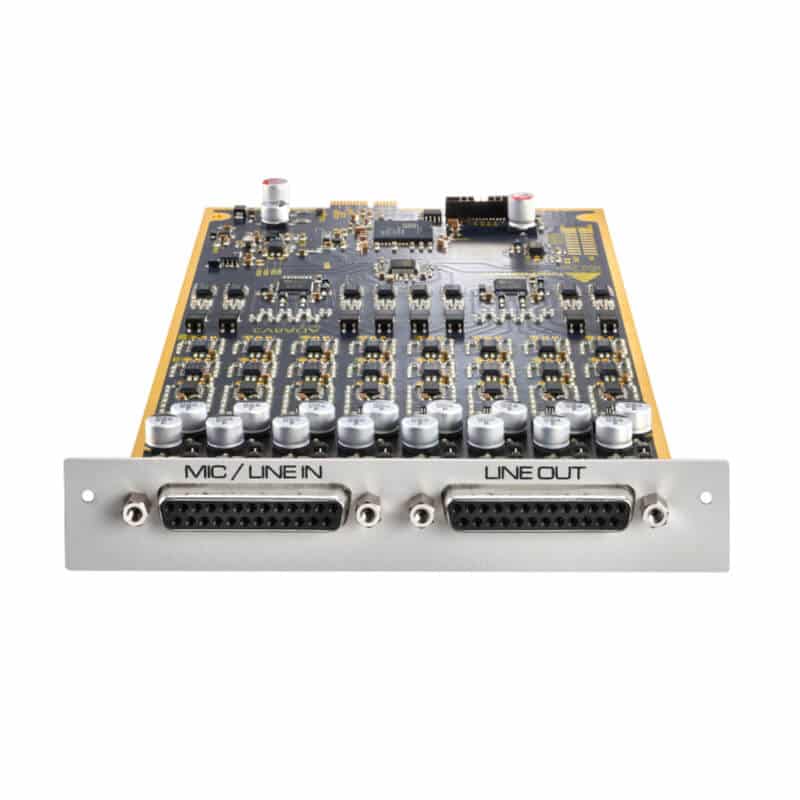

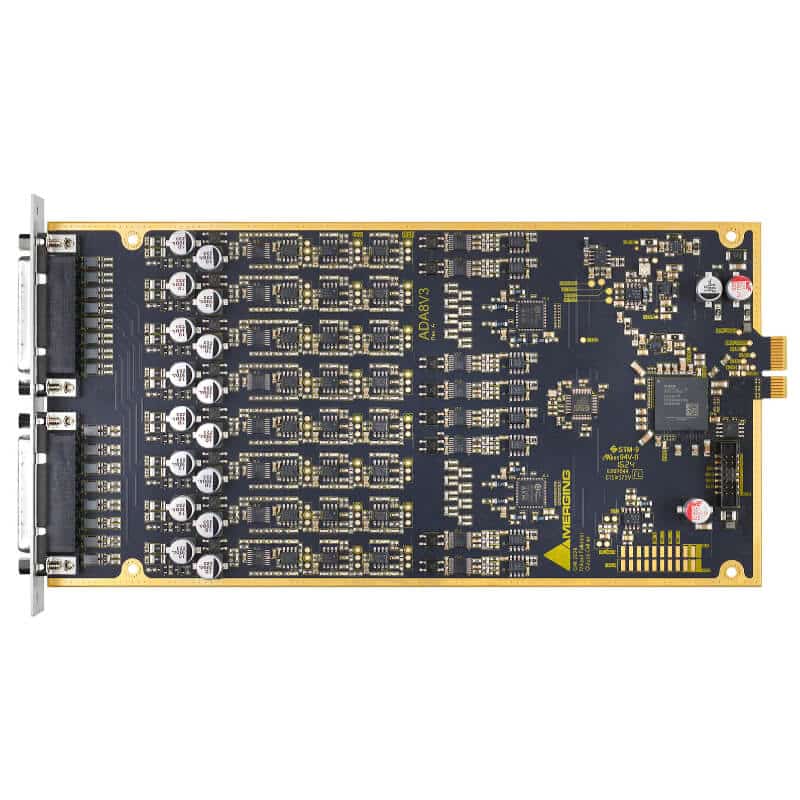

Merging ADA8V3S Dante Ready™ 192

2.495€ TTC

Carte optionnelle pour Horus/Hapi, qui propose 8 canaux Mic/Line A/D & DA jusqu’à 192 kHz

Catégorie : Cartes audio

Merging ADA8V3S Dante Ready™ 192 est une carte optionnelle pour Hapi MKIII seulement qui propose 8 canaux Mic/Line A/D & DA jusqu’à 192 kHz

Caractéristiques détaillées

Mic Pre Max Input (Mic+Pad / Mic / Mic Boost)	+24 dBu / +12 dBu / +0 dBu
Input Impedance (Differential, Software Switchable Per Channel)	3 kΩ / 10.4 kΩ
Frequency response +0/-0.3dB @ fs = 48 kHz	9 Hz – 22 kHz
Frequency response +0/-0.3dB @ fs = 96 kHz	9 Hz – 46 kHz
Frequency response +0/-0.3dB @ fs = 192 kHz	11 Hz – 94 kHz
Dynamic Range (A-weighted, typ.), ref +12 dBu	137 dB
Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu	128 dB
Gain Range (software controlled)	0 dB to +66 dB
THD+N Pre + A/D (20 Hz – 20 kHz) @ -2 dBFS	< -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz	< -130 dB
EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted)	< -127 dBu
Common Mode Rejection Rate (20 Hz – 20 kHz)	> 75 dB
Phantom Power (Software Switchable Per Channel)	+48V
Polarity Invert (Software Switchable Per Channel)	YES
Low Cut filter (Software Switchable Per Channel)	-12 dB/octave, 80 Hz

Max Line Input for 0 dBFS	+24 dBu
Input Impedance (Differential)	10.4 kΩ
Dynamic Range (A-weighted, typ), ref +24 dBu	139 dB
THD+N Line+A/D (20 Hz – 20 kHz) @ -2 dBFS	< -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz, typ.	< -135 dB
Sensitivity Range for 0 dBFS (software controlled)	-42 dBu to +24 dBu
Gain Step	0.5 dB
Common Mode Rejection Rate (20 Hz – 20 kHz)	> 70 dB
Connector Pinout	DB-25 / AES59 (Tascam Ana.)

Max Output level software switchable for 0 dBFS	+24 dBu / +18 dBu +0/-0.5 dB
Frequency response +0/-0.3dB @ fs = 48 kHz	6 Hz – 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz	6 Hz – 46 kHz
Frequency response +0/-3dB @ fs = 192 kHz	6 Hz – 92 kHz
Output Impedance (Differential)	< 80 Ω
Dynamic Range (A-weighted, typ.)	125 dB / 126 dB
THD+N (1 kHz) @ 0dBFS	< -115 dB (0.00017 %)
Interchannel Crosstalk @ 1kHz	< -139 dB
Connector Pinout	DB-25 / AES59 (Tascam Ana.)

Input latency at 44.1/48kHz	8 samples
Input latency at 88.2/96kHz	8 samples
Input latency at 176.4/192kHz	8 samples
Input latency at DXD/384kHz	10 samples
Output latency at 44.1/48kHz	9* samples
Output latency at 88.2/96kHz	9* samples
Output latency at 176.4/192kHz	9* samples
Output latency at DXD/384kHz	9* samples

* Filter setting – Slow Roll Off Filter option = 9 Samples – Sharp Roll Off Filter option = 38 Samples
